Ruddersafe Volvo Penta Type 4 - The Rudder for Safe and Stable Navigation

Ruddersafe Volvo Penta Type 4 is the auxiliary rudder for heavier boats with a Volvo Penta 280/290 Z-drive or duoprop of 8.5 metres and above. Special bracket mounting, no drilling.

16540
€209.75

No fake discounts: our price is simply our regular price.

Secure payment:
iDEAL Bancontact Credit card PayPal Apple Pay Google Pay Bank transfer Przelewy24

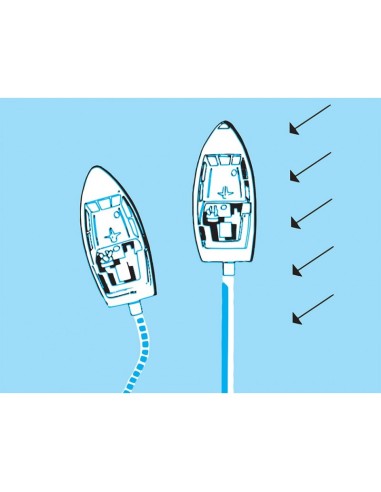

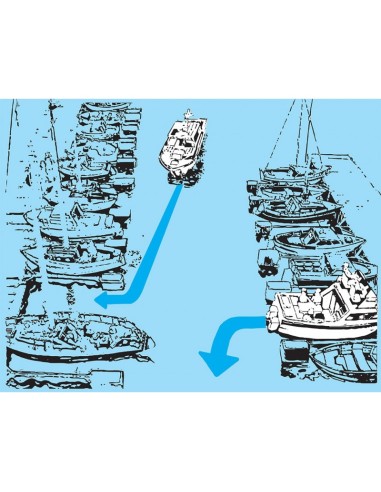

Larger boats equipped with a Volvo Penta 280/290 Z-drive or duoprop need an auxiliary rudder designed to handle the greater displacement and higher steering forces. Ruddersafe Volvo Penta Type 4 is engineered specifically for heavy-duty applications, ensuring complete steerability at slow speeds — including in reverse.

Technical specifications

  • Suitable for: Volvo Penta 280/290 Z-drives and duoprop
  • Boat length: 8.5 metres (28 feet) and above
  • Item number/reference: 16540

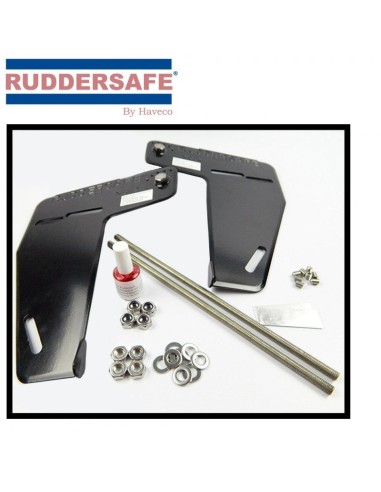

  • Package contents: auxiliary rudder, special Volvo Penta bracket, installation manual

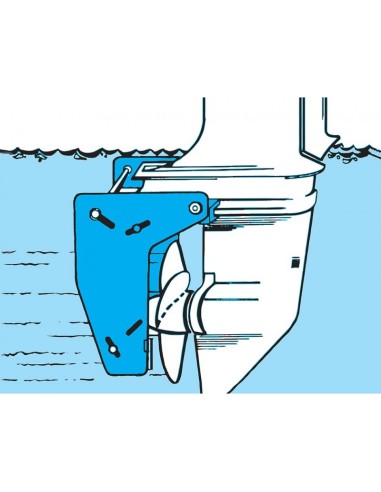

  • Installation: DIY, approx. 20 minutes, via special bracket over the exhaust
  • Please note: standard brackets are NOT included (not needed for Volvo Penta)
  • Works in reverse: yes

Materials, adjustment and maintenance

Ruddersafe Volvo Penta Type 4 is made of corrosion-resistant materials with heat-cured epoxy. If you sail in salt water, treat all parts with antifouling and sand the rudder lightly beforehand. During installation, the distance between the rudder blades must be the same at all measuring points, with a maximum deviation of 1 mm. If the blades are not parallel, the rudder may move up and down sluggishly; correct this with the nuts on one side and then check that the propeller turns freely. After 5 to 10 hours of running, retighten all bolts and nuts on the rudder by hand if necessary.

Do you have a smaller Volvo Penta boat?

Up to 6.5 metres? Choose VP Type 2 (€206,80). Up to 8.5 metres? Choose VP Type 3 (€220,90). Unsure? Use our selection guide.

Official Ruddersafe dealer

Order from Shipsworld.NL BV (KvK 37161456) via Ruddersafe-Shop.com. Price: €253,80. Ordered before 12:30, shipped the same working day. Check out our installation page and customer reviews.

6097744650626

The range of Ruddersafe products includes several product lines, including the standard Ruddersafe and the Ruddersafe Volvo Penta types. These products are designed to work with outboard motors and stern drives (Z-drives), and provide guaranteed performance at low speeds. Installation is easy and requires no drilling into the cavitation plate, so you can get back on the water quickly and without hassle.

In addition to providing high-quality steering products, Ruddersafe strives to offer excellent customer service. On our website, you can easily find information about our range, technical specifications, installation manuals, and more. We are here to assist you at every step of the process, from choosing the right product to installation and maintenance.

If you are looking for innovative and reliable steering products for your boat, then Ruddersafe is the brand for you. Discover our products and enhance your boating experience today!

Manufacturer

On-Deck B.V.Leimuiderdijk 478A
2156 MX Weteringbrug
Netherlands
Email: allhands@on-deck.nlContact: on-deck.nl/nl-nl/contact

Product identification

Ruddersafe Volvo Penta Type 4 - The Rudder for Safe and Stable NavigationItem number: 16540EAN: 6097744650626
