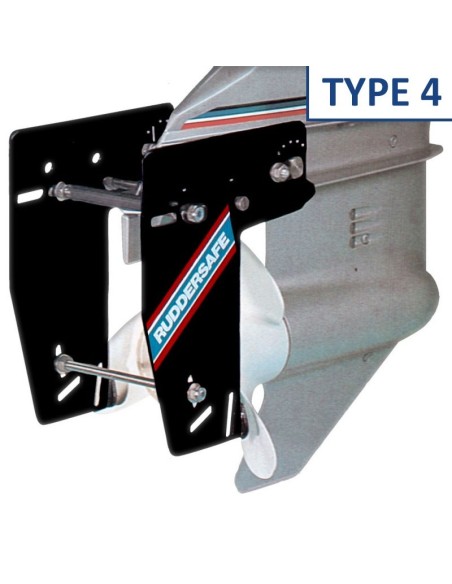

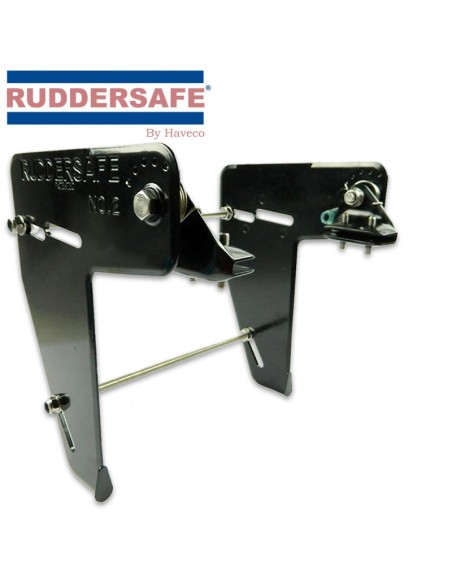

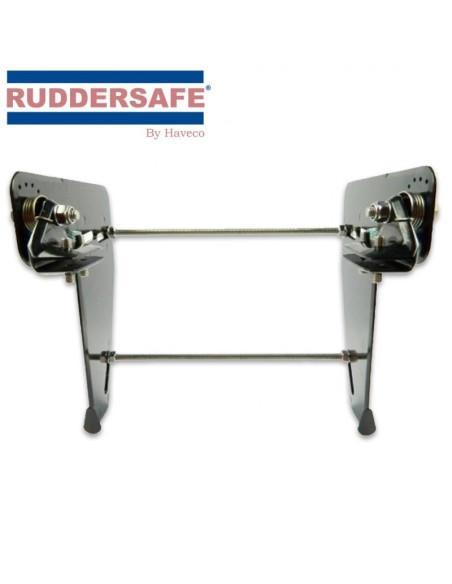

Ruddersafe Type 4 - The Rudder for Safe and Stable Navigation

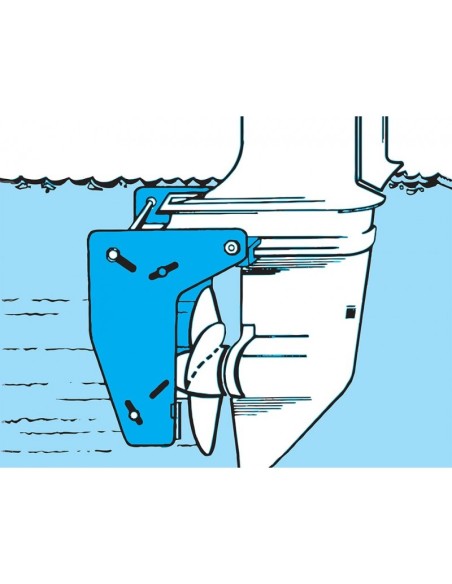

Ruddersafe Type 4 is the auxiliary rudder for boats with an outboard motor and a length of 8.5 metres and above. Easy self-assembly without drilling. Tested by the ANWB Waterkampioen (1985).

16400
€146.05

No fake discounts: our price is simply our regular price.

Secure payment:
iDEAL Bancontact Credit card PayPal Apple Pay Google Pay Bank transfer Przelewy24

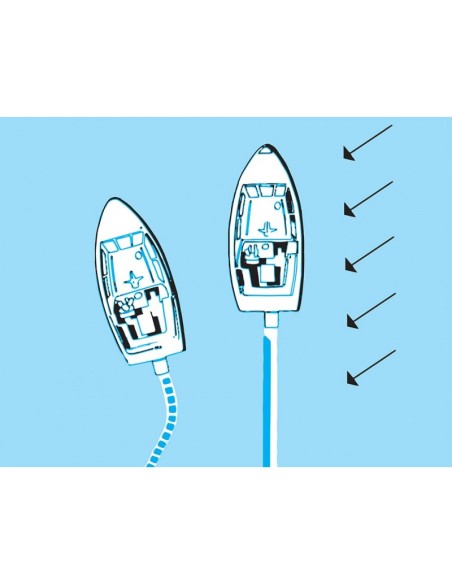

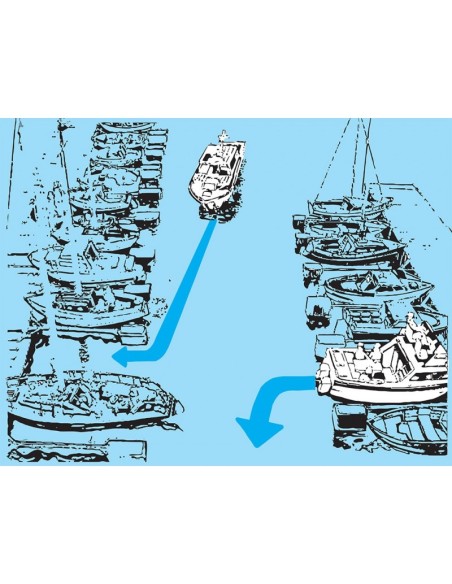

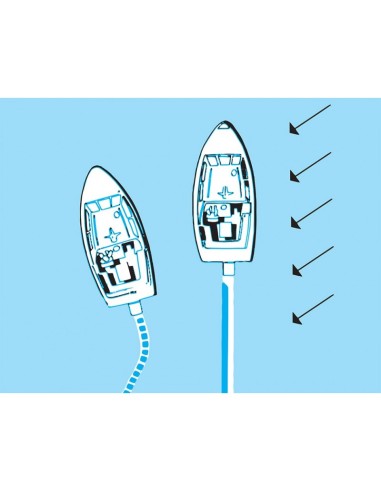

The larger the boat, the more troublesome slow-speed wandering becomes. Ruddersafe Type 4 is specially designed for heavier motor yachts — delivering full steering authority at low speeds so that docking and manoeuvring large vessels remains calm and precise.

Technical specifications

  • Suitable for: outboard motors and stern drives (Z-drives)
  • Boat length: 8.5 metres (28 feet) and above
  • Item number/reference: 16400

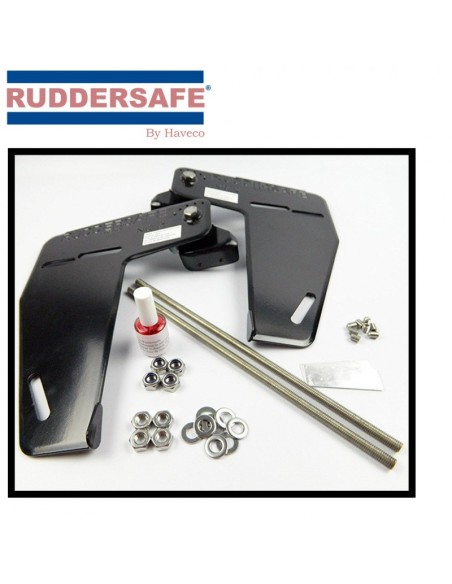

  • Package contents: auxiliary rudder, brackets, installation manual
  • Installation: DIY, approx. 20 minutes, without drilling into the cavitation plate
  • Works in reverse: yes
  • Not suitable for: Volvo Penta 280/290 stern drives (see our Volvo Penta types)

Adjustment and maintenance

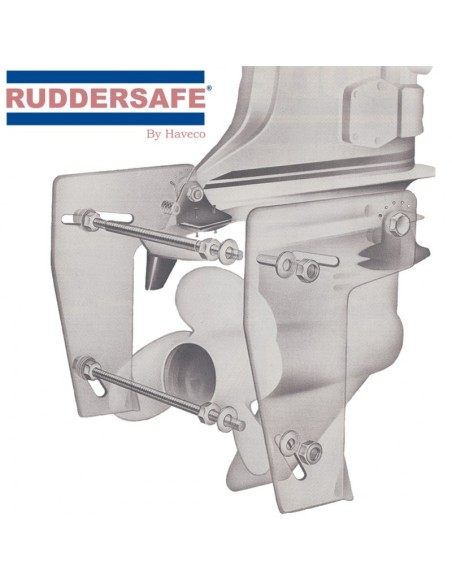

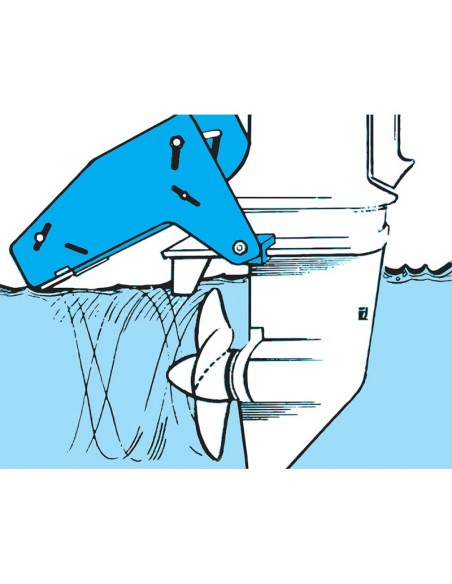

After installation, adjust Type 4 carefully. For the rudder to work properly, the two rudder blades must be parallel to each other and to the centre line of the engine, with the same distance between the blades at the top and the bottom. You set this with the stud bolts and the nuts. Check the adjusting screws and nuts again after 5 to 10 hours of sailing and retighten them by hand if necessary. After that, include the Ruddersafe in the annual service of your engine: lubricate the tipping mechanism, clean it if necessary and apply antifouling. To protect the rudder against corrosion, the manual recommends fitting an aluminium anode to the rudder and/or the tailpiece.

Do you have a smaller boat?

Do you have a boat up to 6.5 metres? Choose Type 2 (€128,03). Up to 8.5 metres? Choose Type 3 (€143,35). Not sure? Use our selection guide.

Official Ruddersafe dealer

Order directly from Shipsworld.NL BV (KvK 37161456) via Ruddersafe-Shop.com. Price: €176,72. Ordered before 12:30, shipped the same working day. Take a look at the customer reviews or the installation video.

6097753291216

The range of Ruddersafe products includes several product lines, including the standard Ruddersafe and the Ruddersafe Volvo Penta types. These products are designed to work with outboard motors and stern drives (Z-drives), and provide guaranteed performance at low speeds. Installation is easy and requires no drilling into the cavitation plate, so you can get back on the water quickly and without hassle.

In addition to providing high-quality steering products, Ruddersafe strives to offer excellent customer service. On our website, you can easily find information about our range, technical specifications, installation manuals, and more. We are here to assist you at every step of the process, from choosing the right product to installation and maintenance.

If you are looking for innovative and reliable steering products for your boat, then Ruddersafe is the brand for you. Discover our products and enhance your boating experience today!
