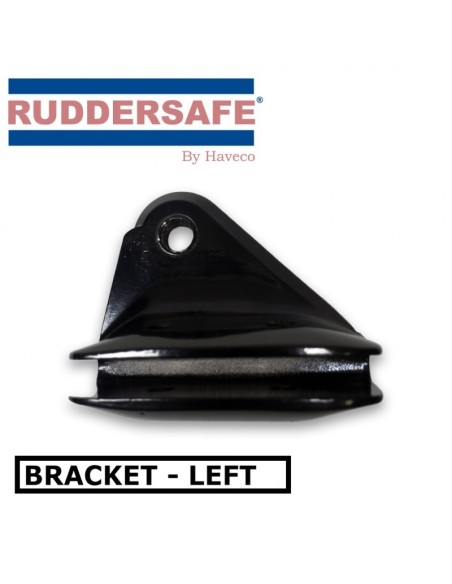

Has a bracket on your Ruddersafe become damaged or misplaced? The Ruddersafe Bracket Left (part number 16000) is the genuine left replacement part and fits all Ruddersafe Standard Types: Type 2, Type 3 and Type 4.
Specifications
- Side: left (from the perspective of looking forward from behind the boat, with the Ruddersafe in view)
- Suitable for: Ruddersafe Standard Type 2, Type 3 and Type 4
- Item number/reference: 16000
- Please note: this part is not suitable for Ruddersafe Volvo Penta types
Replacing a bracket: how to fasten it correctly
On the Ruddersafe Standard Types there is a bracket on both the left-hand and the right-hand side of the cavitation plate, and the two brackets must be spaced equally. The adjusting screws that fix the rudder blade to the cavitation plate are screwed into the bracket.
First screw the adjusting screws into the bracket by hand. The brackets have a protective coating that can also cover the screw thread, which can make the screws slightly harder to turn in; you can remove this coating with an M8 bolt or stud bolt. If necessary, first place the shim on top of the cavitation plate. Then slide the rudder blade over the cavitation plate as far as it will go and tighten the top and bottom adjusting screws evenly, alternately, one turn at a time.
Important: tighten the bracket by hand only, with an ordinary spanner. Never use a power tool such as a cordless drill or an impact wrench, and do not overtighten: overtightening can damage the bracket or cause it to break. Hand-tight is tight enough.
Do you also need a right bracket?
The Ruddersafe Bracket Right (part number 16001) is also available in our webshop.
